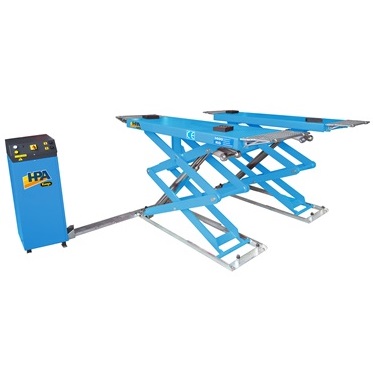

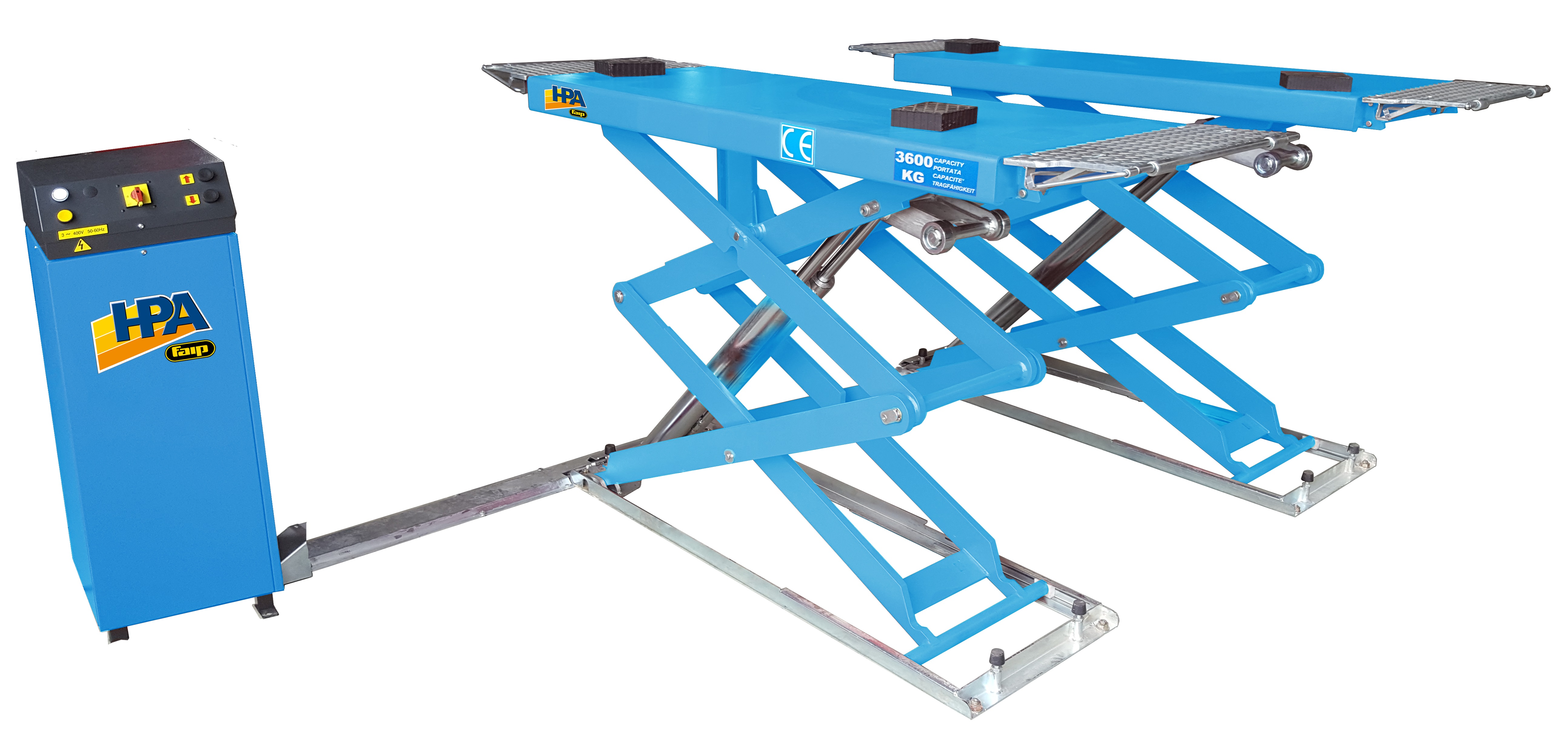

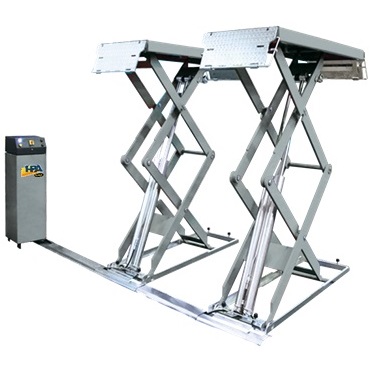

SUPERLIFT 36-2XC EF / 32-2XC EF Double Scissor 3,600 & 3,200 KG
Description
Electrohydraulic underbody double scissors type lift, for tyre specialists, car workshops and body repairers
Alignment of the runways with a dual Master / Slave circuit (two cylinders per runboard) without mechanical safety racks
Capacity: 3.6t (SUPERLIFT 36-2XCEF) and 3.2t. (SUPERLIFT 32-2XCEF)
Runboards version with Flaps
On floor installation
Designed in Italy
Specification
Load Capacity:
36-2XC EF - 3,600 Kg
32-2XC EF - 3,200 Kg
Max Lifting Height: 1890 mm
Min Lifting Height:
36-2SC EF: 110 mm
32-2XC EF: 105 mm
Lifting Time: 45 Seconds
Electric motor 3 Kw

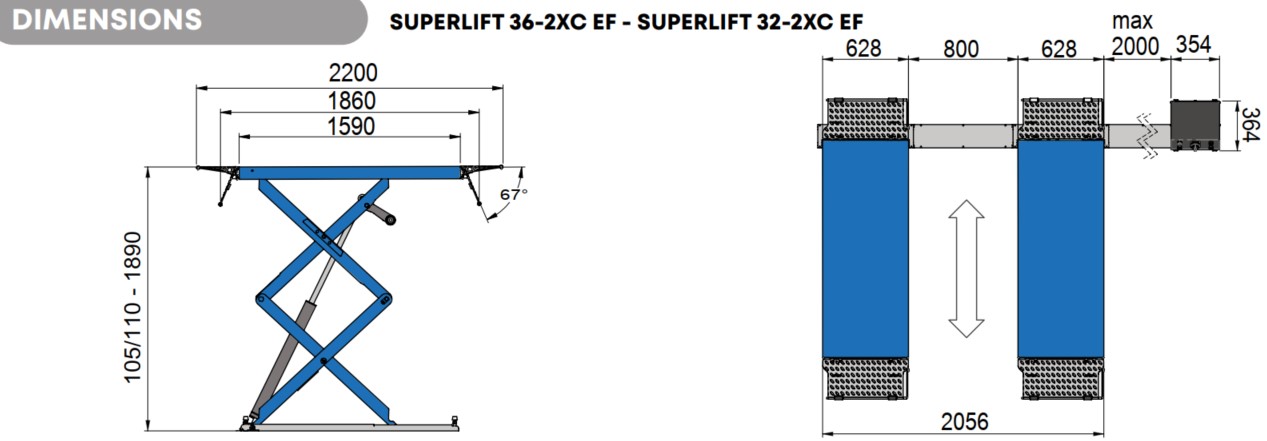

Dimensions
.
