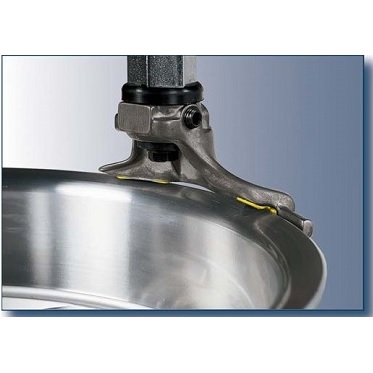

• M322 Head

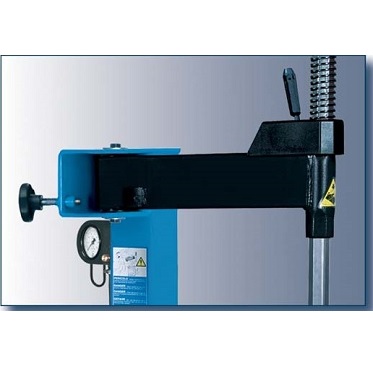

  • M322 Arm

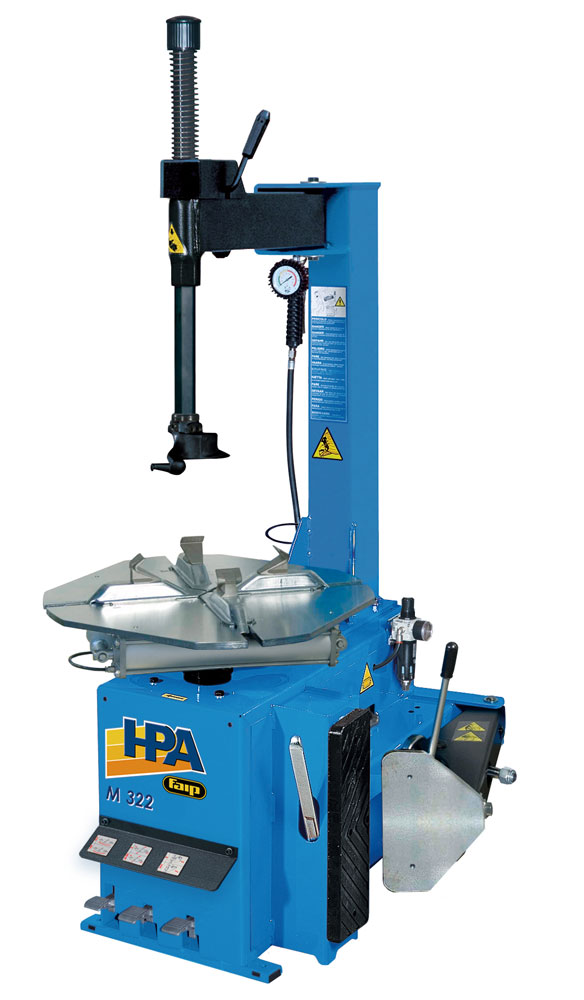

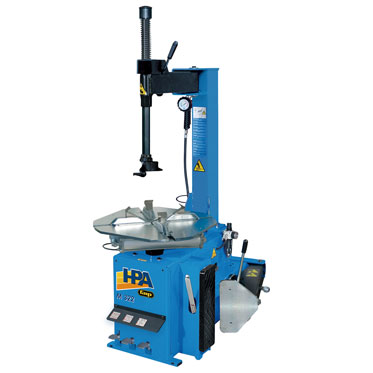

M322 12V

Description

Semi-automatic tyre changer with swinging arm for alloy rims from 11” to 22".
12V - Suitable for fitting to a mobile tyre fitting van.
Outside locking up to 22".
Standard bead breaker.
Single speed motor.
Can be supplied with suitable help arm.

Specification

Made In Italy
Rim Diameter : 11” to 22”
Bead Breaking Power ( Blade ) – 10 BAR / 15,500 Nm
Bead Breaking Blade Opening – 320mm
Maximum Wheel Diameter: 980mm / 38.4”
Maximum Wheel Width: 3” to 12”
Motor: 1 Speed 12v
Working Pressure : 10 BAR
Noise Level : < 70 dB ( A )
Maximum Self Centering Torque : 1,200 NM
Weight: 208 Kg

Dimensions

Dimensions

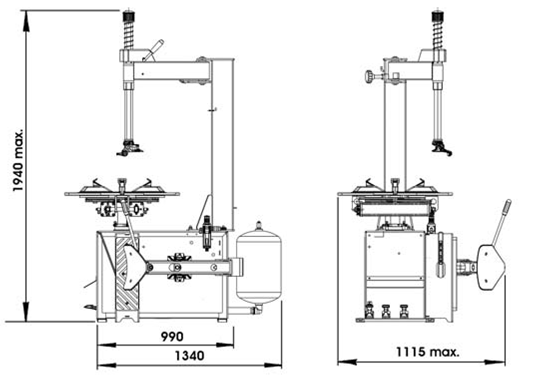

M322 (Dimensions)

Accessories

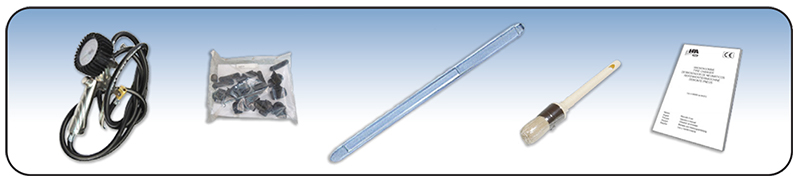

Complete with standard accessories

Tyre Lever
Inflating Gun
Lubrication Brush
Plastic Inserts for Fitting Head

Optional Extras

Set of Motorbike attachments
Set of 12 Jaw Pads
Set of 6 plastic covers for blade
Set of 6 plastic covers for tyre lever
Plastic tool head set.
