M54 Tyre Changer c/w HTB 24 Help Arm

Description

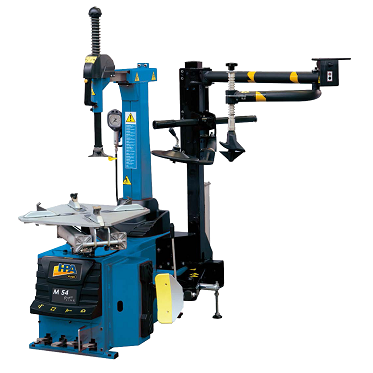

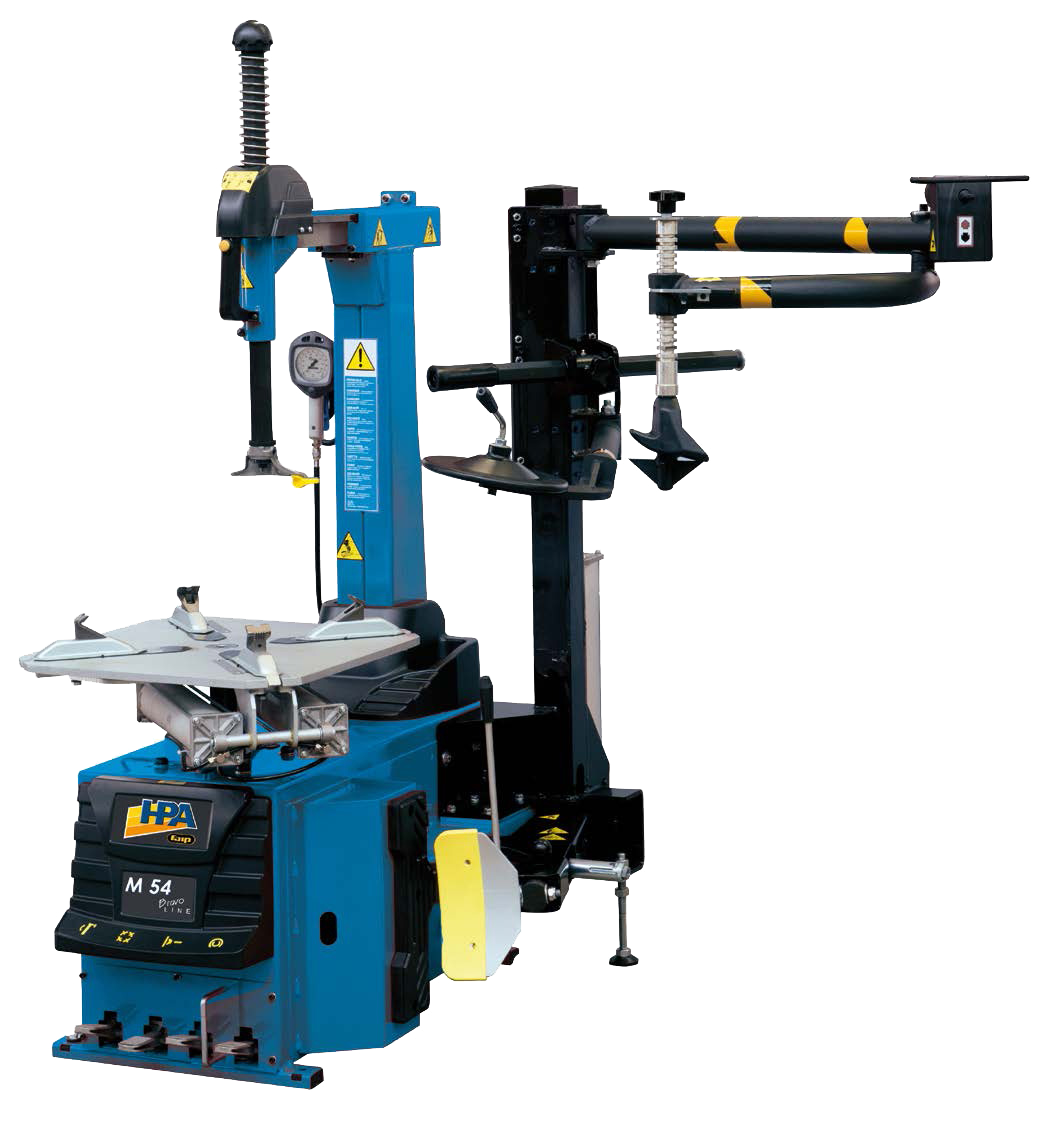

M54 Bravo Line Tyre Changer from HPA , ideal for the small independant tyre shop or garage.

Outside locking up to 24".

Supplied with HTB 24 Help Arm



Specification


Rim Diameter : 11” to 24”
Bead Breaking Power ( Blade ) – 15,000N
Bead Breaking Blade Opening – 380mm
Working Pressure : 8 - 10 BAR
Maximum Wheel Diameter: 1100mm / 43”
Maximum Wheel Width: 3” to 14”
Motor: 1 Speed 230V / Single Phase / 50-60Hz
Noise Level : < 70 dB ( A )
Maximum Self Centering Torque : 1,200 NM
Weight: 255 Kg

Dimensions

Dimensions (Without help arm attached)

M54 (Dimensions)
