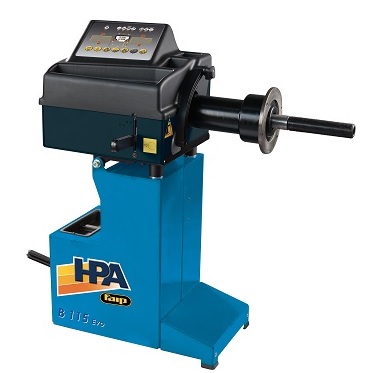

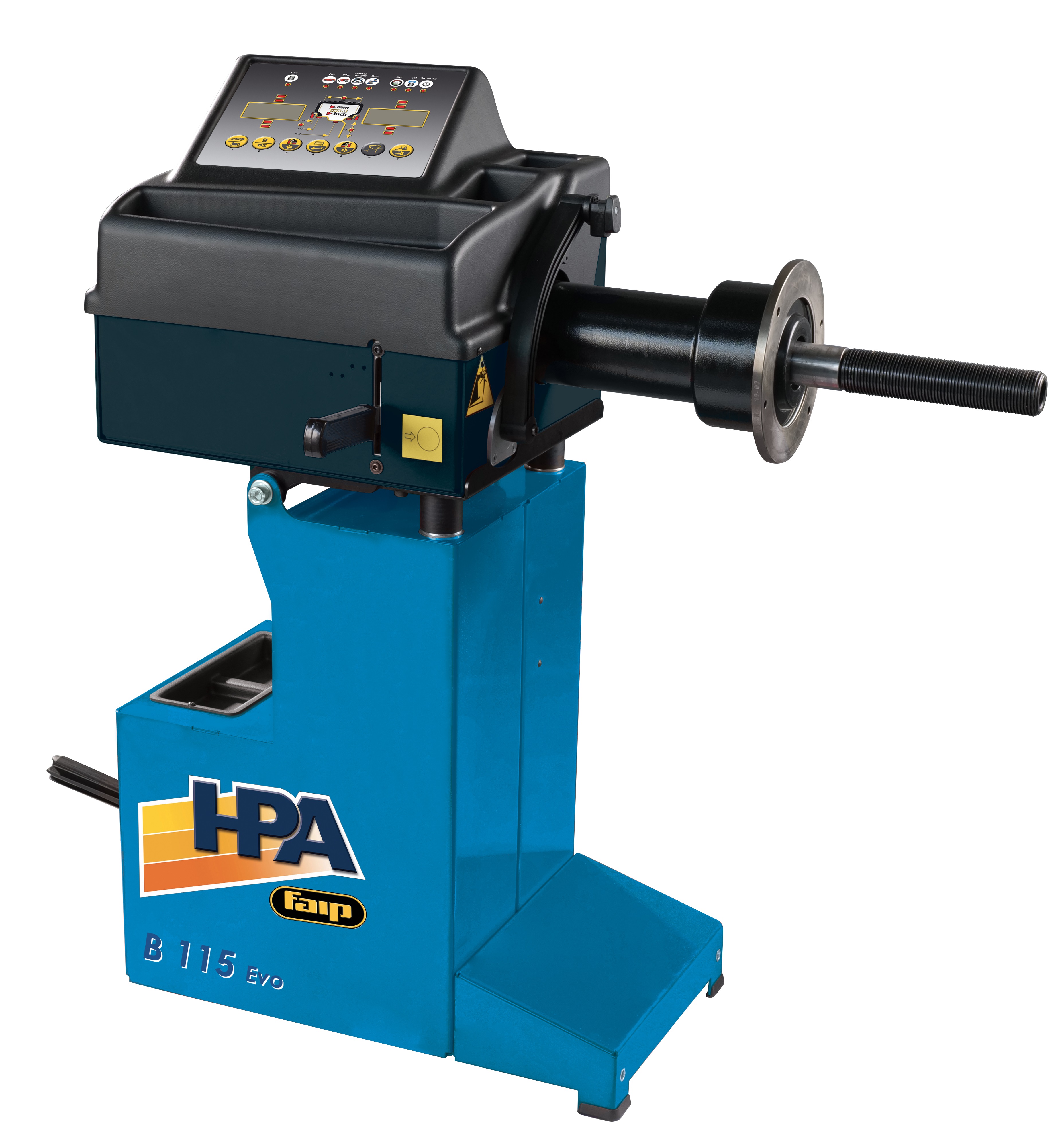

B115 EVO HAND SPIN
Description
New Product from HPA
Compact & Lightweight Wheel Balancer
Ideal for workshops where space is limited
Features
Hand Spin

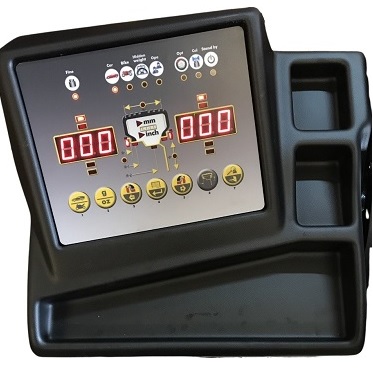

Multi Functional Digital Display

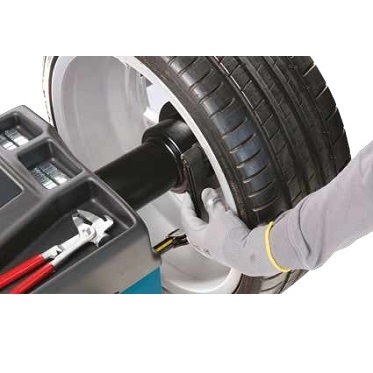

Autosel : 28" - Automatic acquistion of distance up to 28" diamter wheel width, intergrated function that automatically activates the balancing programmes.
Next Generation Measuring Unit : Derived from higher level models. Efficient and reliable, balances wheels up to 85kg
Electrical Clamping Brake.
Specification
Balancing Speed: 98 rpm
Maximum Calculated Imbalance Value: 999 g
Average Spin Time: 5 Seconds
Shaft Diameter: 40 mm
Rim Width Setting Range: 1.5" - 20"
Rim Diameter Setting Range: 20" - 28"
Max Wheel / Machine Distance: 250 mm
Maximum Wheel Diameter: 1118mm
Maximum Wheelweight ( WIth Stabilising foot or ground fixing) : 85kg
Supply Voltage : 230v / 1 Phase
Machine Weight: 67 kg
Dimensions: 1006 x 474 x 947mm
Downloads
Accessories

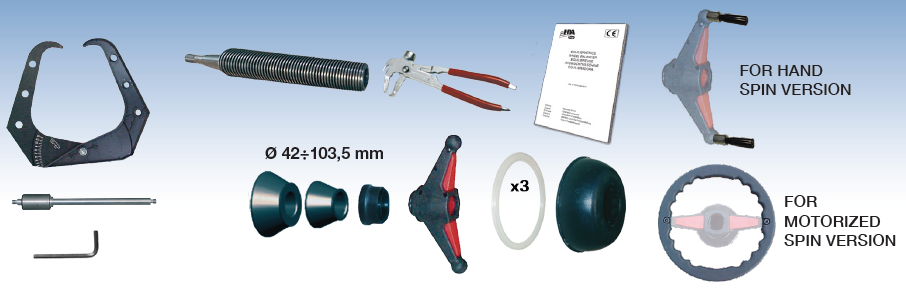

Compelete with Standard Accessories

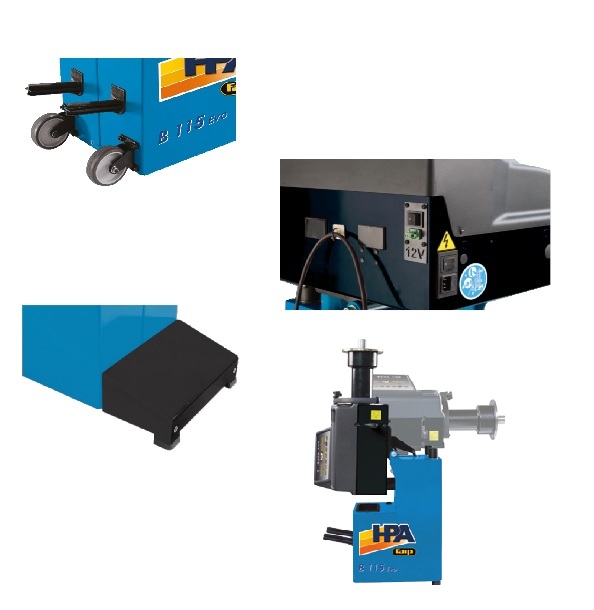

Optional Accessories
Trolley Kit: For easier handling
12V Kit: For connection to a 12V power source
Stabiliser Foot : Kit to avoid ground fixing
Tilt Kit: Tilt Converstion Kit for moving shaft to vertical postion.
